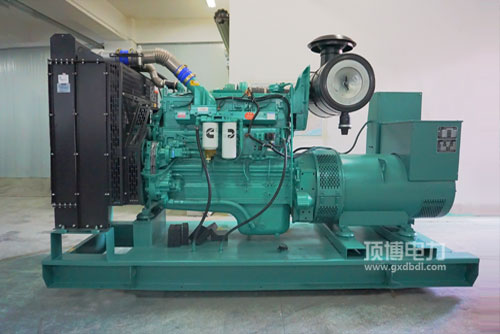

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用汽车发驱动力汽油经济实惠性好: 发达的汽油掌握开发，独立拥有的STC、ESTC 分等级掌握开发，特俗开发的气缸最上层复燃室，高压低压输送汽油，彻底吸雾，复燃彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用打火机瞬态能力出众: 完满的打火机整体化设计的，紧密配合康明斯鲜明的EFC体系，操作精密度大，运行准确时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用打火机升额定功率高: 建筑体开发紧凑型.样貌部置合情合理，启用趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷设备 QSNT. QSK19. QSK38. QSK50充分考虑在我国非路面最后时间段及亚洲Tier2. Tier 3尾气排放条例需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具而犯性好， 打着机运营及保护护肤保养方便快捷，人工价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率空间 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观设计尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯发电机组用热车机的特征：质量分数小， 降低比低， 网格板气流预热，更能启动时，移动式车载一体机主机电源的首先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机型號	实用工作功率(kW)Prime Power	备用电源最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
